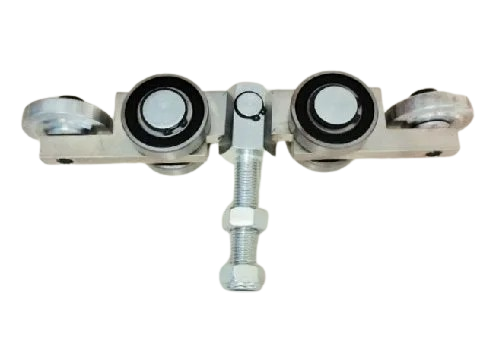

#106 Standard 4 Wheel Cantilever Gate Internal Truck / Trolley Assembly
(Truck Assemblies fit inside IGD E/Z Slide Aluminum Track)
Over All Length: 12"
Fits Interior Track Dimensions 2 3/16" Wide X 2 1/8" High
Heavy Duty Cantilever Internal Truck Trolley Assembly completely enclosed in International Gate Devices EZ Slide Aluminum Track assures easy, smooth sliding performance in all weather conditions.
One piece, heavy duty, cold rolled, zinc coated steel body
For Volume Pricing Please Call Our Toll Free #: 800-557-GATE (4283)
2.125" O.D. steel side guide wheel with permanently lubricated sealed bearings provides free lateral alignment control from within track.
2.045" O.D. factory lubricated, rubber sealed bearings, provide maintenance free operations for the life of the gate. The eight 300-k series rubber sealed factory lubricated bearings have a static load rating of 1,760 pounds and a dynamic load rating of 4,000 pounds.
The 5/8" center bolt is heat treated to 40 rockwell.
IGD, warrants its truck assemblies against defects in material and workmanship, for the life of the gate system. We reserve the right to repair or replace any truck assembly returned to us for warranty claim.
